Custom Canopy Frames & Pop Up Tent Frames

Shop By
Price
0
4000 & above
Hardware Only
  1. ×
Shop By
View as Grid List

6 Items

Set Descending Direction

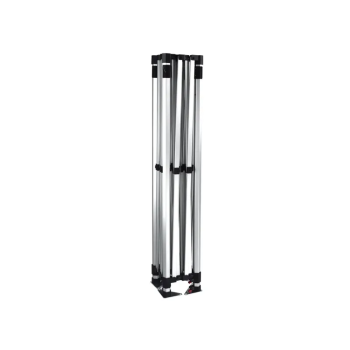

  1. 10x10 canopy frame in 40mm hexagonal aluminium, commercial pop up tent frame
    10x10 Pop-Up Tent Frame
    Rating:
    100%
    From CAD $477.00

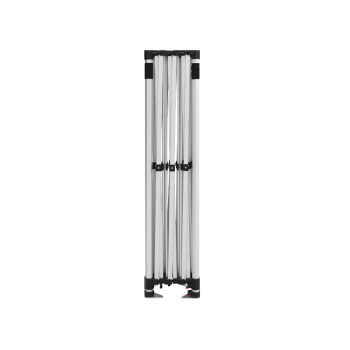

  2. 10x15 canopy frame in 40mm hexagonal aluminium with 6 legs, pop up tent frame only
    10x15 Pop-Up Tent Frame
    Rating:
    100%
    From CAD $1,399.00

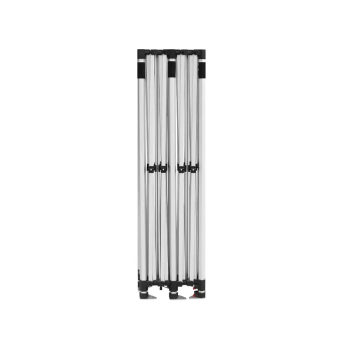

  3. 10x20 canopy frame in 40mm hexagonal aluminium with 6 legs, pop up tent frame only
    10x20 Pop-Up Tent Frame
    Rating:
    100%
    From CAD $1,599.00
  4. 20x20 pop up tent frame folded, 50mm heavy duty hexagonal aluminium canopy frame
    20x20 Pop-Up Tent Frame
    Rating:
    78%
    From CAD $3,845.00
  5. 13x13 pop up tent frame folded, 50mm heavy duty hexagonal aluminium canopy frame
    13x13 Pop-Up Tent Frame
    Rating:
    78%
    From CAD $2,499.00
  6. 5x5 pop up tent frame folded, 40mm hexagonal aluminium canopy frame
    5x5 Pop-Up Tent Frame
    Rating:
    78%
    From CAD $849.00
per page

A custom canopy frame lets you build the exact pop up tent you need, or replace a bent frame without buying a whole new tent.

SignageBuzz sells commercial pop up tent frames in hexagonal aluminium, in 6 sizes from 5x5 to 20x20. Choose a 40mm frame for lighter everyday use or a 50mm heavy-duty frame for frequent setups and windier sites, then add sand bags, stakes or a wheel bag. Frames start at CAD $477 for a 10x10 and come with a carrying bag and a 2-year frame warranty.

Need the fabric too? Add a custom canopy top, or get a complete custom pop up tent with frame and printed top.

Shop Custom Canopy Frames by Size

FrameCoverageLegsLeg SizeFrom
5x5 canopy frame25 sq ft (2.3 m²)440mmCAD $849
10x10 canopy frame100 sq ft (9 m²)440mm or 50mmCAD $477
10x15 canopy frame150 sq ft (14 m²)640mm or 50mmCAD $1,399
10x20 canopy frame200 sq ft (18.6 m²)640mm or 50mmCAD $1,599
13x13 canopy frame169 sq ft (15.7 m²)450mmCAD $2,499
20x20 canopy frame400 sq ft (37 m²)Internal frame50mmCAD $3,845

On the 10x10, 10x15 and 10x20, the 50mm heavy-duty upgrade is CAD $300. The 5x5 comes in 40mm only, and the 13x13 and 20x20 come in 50mm only. Every personalized canopy metal frame comes with the size, leg size and add-ons you choose.

40mm vs 50mm Custom Canopy Tent Frame

Spec (10x10)40mm Frame50mm Heavy-Duty Frame
Leg wall thickness1.2 mm2 mm
Weightabout 42 lbs (19 kg)about 67 lbs (30 kg)
Wind rating (legs anchored)25 mph (40 km/h)37 mph (60 km/h)
Best forOccasional events, markets, easy carryingWeekly use, rental fleets, windy sites
PriceIncludedCAD $300 upgrade

Custom 10x10 Canopy Frame: The Most Popular Size

The 10x10 is the standard vendor booth size at markets, fairs and trade shows, and it is our best-selling custom 10x10 tent frame. It covers 100 sq ft on 4 legs, folds into one unit and opens in minutes with 2 people. The legs lock at 3 heights, about 4 inches apart, with 73.2" to 81.9" (186 to 208 cm) of clearance underneath.

Want a heavy duty 10x10 canopy frame? Choose the 50mm option on the 10x10 canopy frame. Its thicker 2 mm walls make it the stronger choice for frequent use.

Aluminium vs Steel Canopy Frames

Many shoppers search for a custom metal canopy frame or a custom steel canopy frame. Here is how our aluminium frames compare:

  • Lighter to carry. Aluminium weighs much less than steel, so one or two people can move and set up the frame.
  • Resists rust. Anodized aluminium legs and truss bars hold up to rain and humid weather.
  • Steel where it counts. The foot plates are zinc-plated steel for a stable base on the ground.
  • Commercial strength. Hexagonal legs are stiffer than round or square tubing of the same size.

What Comes with Every Pop Up Tent Frame

  • A pre-assembled hexagonal aluminium frame that folds into one unit
  • Telescopic legs with 3 height settings
  • Reinforced truss bars and a centre hub
  • Zinc-plated steel foot plates
  • A carrying bag
  • A 2-year frame warranty

Optional add-ons on every frame: sand bags, ground stakes and ropes, and a heavy-duty wheel bag. You'll find more weights and stakes in canopy accessories.

How to Choose the Right Custom Canopy Frame

  • Match the size to your booth space and the canopy top you own or plan to buy.
  • Pick the leg size. Choose 40mm for light use and easy carrying, or 50mm for frequent use and wind.
  • Plan your anchoring. Weight or stake every leg. Use sand bags on hard ground and stakes on grass.
  • Add branding. Finish the frame with a printed top, custom canopy walls and tent banners.

Who Buys a Custom Pop Up Tent Frame

  • Vendors replacing a bent or broken frame and keeping their printed top
  • Event rental companies adding frames to their fleet
  • Businesses building a custom canopy frame and printed tent one part at a time
  • Sports teams, schools and clubs that need a reliable shade frame

Custom Canopy Frame FAQs

What is a canopy frame?

A canopy frame is the folding metal skeleton of a pop up tent: the legs, truss bars and centre hub that hold up the canopy top. Our frames are hexagonal aluminium, fold into one unit and open without tools.

Can I order a custom canopy frame?

Yes. You customize the frame by size (5x5 to 20x20), leg gauge (40mm or 50mm on most sizes) and add-ons such as sand bags, stakes and a wheel bag. Pair it with a custom printed canopy top, walls or banners to complete your branded tent.

Which is the best heavy duty 10x10 canopy frame?

Our 50mm 10x10 frame is the heavy-duty choice. It has 2 mm walls instead of 1.2 mm, weighs about 67 lbs (30 kg) and is wind rated to 37 mph (60 km/h) with the legs anchored. It is a CAD $300 upgrade over the 40mm frame.

What is the difference between 40mm and 50mm frames?

The number is the width of the hexagonal leg. The 40mm frame is lighter (about 42 lbs (19 kg) for a 10x10) and rated to 25 mph (40 km/h). The 50mm frame is heavier and stiffer, rated to 37 mph (60 km/h), and is the better pick for frequent use or windy sites.

Are your canopy frames steel or aluminium?

The legs and truss bars are anodized aluminium, and the foot plates are zinc-plated steel. Aluminium is lighter than a steel canopy frame and resists rust, which makes it easier to carry and set up at every event.

Will your frame fit my existing canopy top?

Our frames fit standard canopy tops in the same size. If your top comes from another brand, compare the frame size and leg count, or order a matching custom canopy top made for our frames.

How tall is a 10x10 canopy frame?

The legs lock at 3 heights about 4 inches apart, with a clearance of 73.2" to 81.9" (186 to 208 cm) under the frame.

Is a canopy top included?

No. Frames are sold as hardware only with a carrying bag. Add a printed or blank top separately, or buy a complete custom pop up tent.

What warranty do the frames have?

Our canopy frames carry a 2-year frame warranty.

Why Businesses Choose SignageBuzz

  • 6 Frame SizesFrom a 5x5 kiosk to a 20x20 event tent.
  • 40mm or 50mm LegsHexagonal aluminium with a 2-year warranty.
  • Tool-Free SetupFolds into one unit with 3 leg heights.
  • Complete Tent OptionsAdd custom tops, walls and banners.

Ready to order custom canopy frames? Choose a size above, or contact us for help matching a frame to your canopy top.
